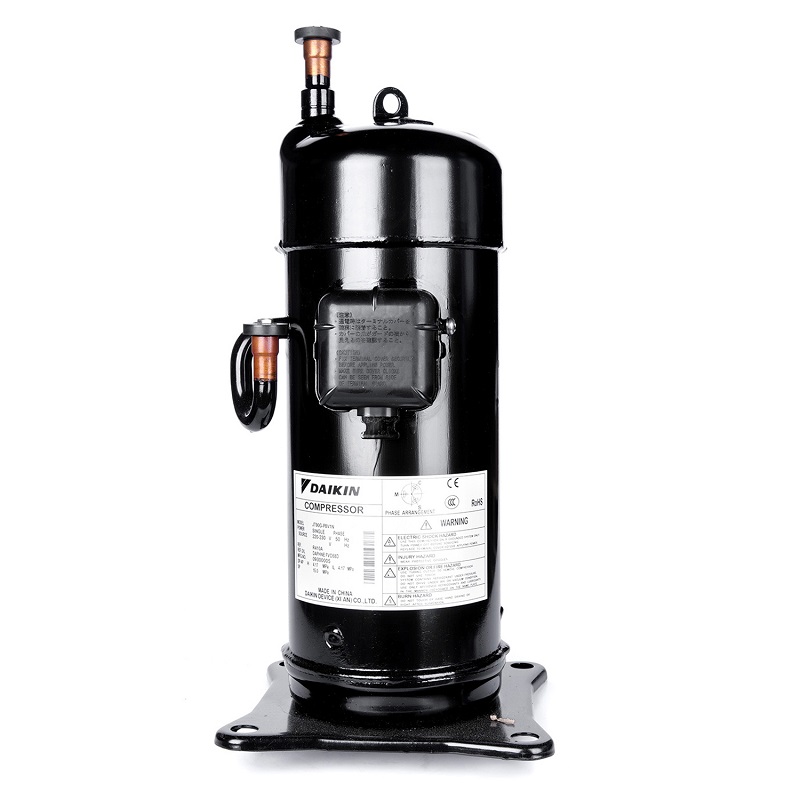

R410A 29100BTU 3PH Daikin Commercial Scroll Compressors


Daikin Commercial Scroll Compressors
Daikin Commercial Scroll Compressors Daikin Commercial Scroll Compressors Daikin Commercial Scroll Compressors

R410A 29100BTU 3PH Daikin Commercial Scroll Compressors

G model compressors are installed in DAIKIN Air Packaged water chillers.

They are ideally used in combination with the FAN Coil Units and/or the Air Handing Units for air conditioning of offices, hotels, restaurants and hospitals.

  • Item NO.:

    JT90G-P8V1N

  • Payment:

    L/C, T/T

  • Product Origin:

    CHINA

  • Color:

    BLACK

  • Shipping Port:

    Huangpu, China

  • Lead Time:

    35DAYS
Inquiry now

Products Description

DaiKIN Compressor Technology For Air-Contioning &Heatpump Applications
Daikin give you the worldwide product leadership with the best performance and best quality
Characteristic of  DaiKin Scroll Compressor:
High-quality, Reliable
Compact size and light weight
Low Noise and Vibration
Ultra-precision machining and assembly technology
1. Brand: Daikin
2. Compressor: Rotary compressor
3. Refrigerant: R410A
4. Voltage/frequency: 380V/50Hz

Daikin Commercial Scroll Compressors

Performance of  Dakin Scroll Compressor:

Hp

Rated voltage

Item No.

Specifications

Capacity at 50Hz

COP (W/W)

Current (A)

Input Power  (W)

Displacement (cm³/r)

W

Btu

at 50Hz

at 50Hz

7

380V 50Hz 3 phase

JT212D-Y1L

21300

73400

3.25

11.3

6.56

117.3

7.5

JT236D-Y1L

23800

81900

3.27

12.4

7.27

131

8.5

JT265D-Y1L

26500

91100

3.3

13.7

8.03

144.7

10

JT300D-Y1L

29600

102000

3.31

15.2

8.94

163

11

JT315D-Y1L

30800

106200

3.33

15.7

9.24

169.5

12

JT335D-Y1L

33700

116000

3.34

17.2

10.08

184.2

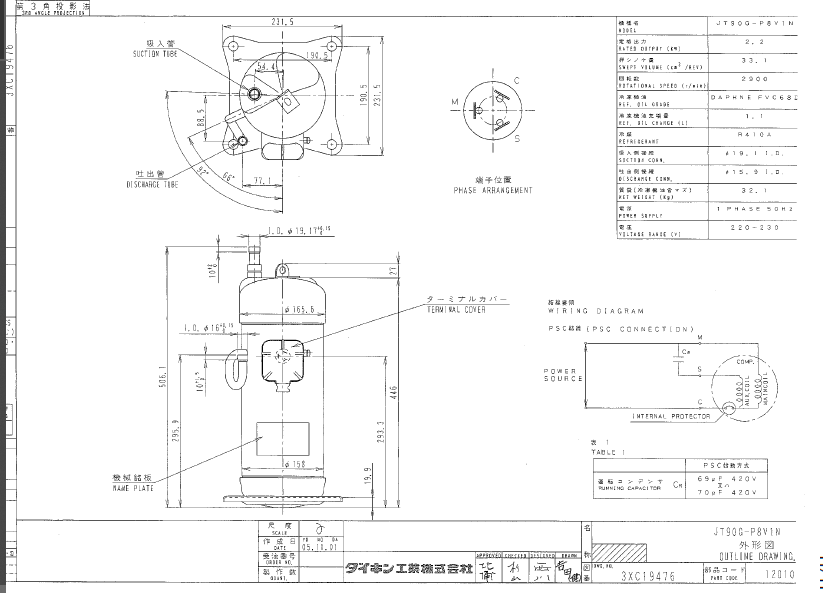

 Accessory Fitting:

Daikin Commercial Scroll Compressorsr fitting

Delivered Parts List:

LC Rotary compressor Accessories

Daikin compressor loading process
