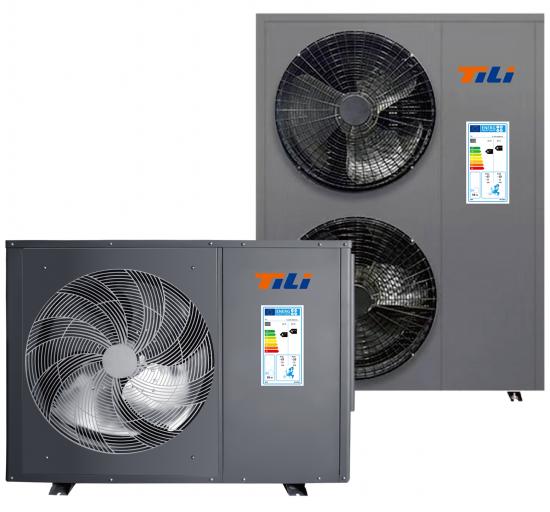

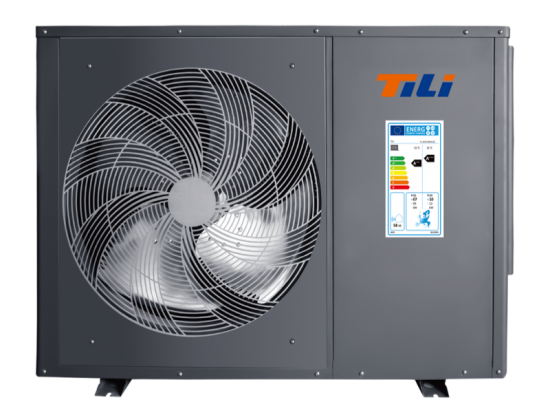

R32 DC Inverter Air Source Heat Pump

R32 DC Inverter Heat Pump for Heating and Cooling and Hot Water
  • Item NO.:

    TL-AHP-004HC32
  • Product Origin:

    China
  • Color:

    Grey
  • Shipping Port:

    Guangzhou
  • Lead Time:

    30days
  • Product weight:

    110kgs

Basic Info


Model NO.
TL-AHP-004HC32
Gwp
675
Refrigerant
R32/2200g
Noise
≤55dB(a)
Net Weight
110kg
Max Water Pump Head
12m
Expansion Tank Capacity
5L
Power Supply
230V-1n-50Hz
Rated of Waterproof
Ipx4
Transport Package
Pallet

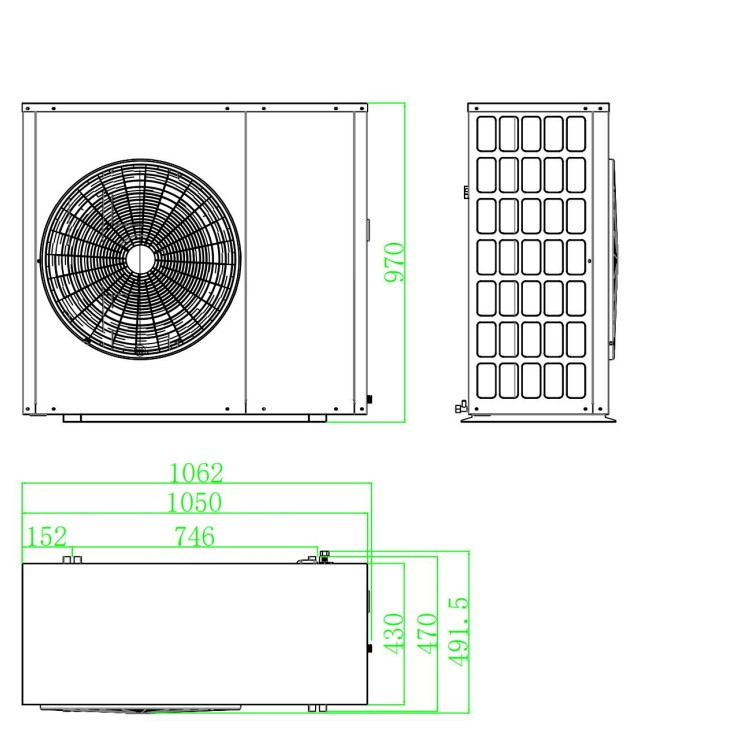

Specification
1050*430*970mm
Trademark
Tili
Origin
Guangzhou
Production Capacity
12000 Unit/Year





Data sheet of 12KW DC inverter Heat Pump:

Model TL-AHP-004HC32
Rated of waterproof IPX4
Rated of Elc. leakage protection Class I
Power supply 230V-1N-50Hz
Max water pump head 12M
Expansion tank capacity 5L
Rated heating capacity(A7/W35) 12000W
Rated input power(A7/W35) 2650W
Rated input current(A7/W35) 11.6A
COP(A7/W35) 4.53 W/W
Rated cooling capacity(A35/W18) 12200W
Rated input power(A35/W18) 3570W
Rated input current(A35/W18) 15.5A
EER(A35/W18) 3.42 W/W
Max input power 4100W
Max input current 18A
Rated flow rate 2.1 m³/h
Refrigerant R32/2200g
GWP 675
Equivalent CO2 1.485t
Net weight 110kg
Noise 55dB(A)
Max working pressure 4.5 MPa
